BoundCube Class Reference

A helper class to define a bounding cube. More...

#include <basics.h>

Public Member Functions
	BoundCube ()
	BoundCube (const Point3D &p1, const Point3D &p2)
void	setBounds (float xMin, float yMin, float zMin, float xMax, float yMax, float zMax)
void	setBounds (const BoundCube &b)
void	setInvalid ()
void	setInverseLimits (bool setAsValid=false)
void	setBound (unsigned int bound, unsigned int minMax, float value)
float	getBound (unsigned int bound, unsigned int minMax) const
void	getBound (Point3D &bound, unsigned int minMax) const
Point3D	getCentroid () const
	Return the centroid. More...
void	getBounds (Point3D &low, Point3D &high) const
	Get the bounds. More...
float	getSize (unsigned int dim) const
	Return the side length of the cube along the specified dimension. More...
bool	isValid () const
	Returns true if all bounds are valid. More...
bool	isFlat () const
	Returns true if any bound is of null thickness. More...
bool	isNumericallyBig () const
	Returns true if any bound of datacube is considered to be "large" in magnitude compared to. More...
void	setBounds (const Point3D *ptArray, unsigned int nPoints)
	Obtain bounds from an array of Point3Ds. More...
void	setBounds (const Point3D &p, const Point3D &q)
	Use two points to set bounds – does not need to be high,low. this is worked out/. More...
void	setBounds (const std::vector< Point3D > &ptArray)
	Obtain bounds from an array of Point3Ds. More...
void	setBounds (const Point3D &p, float radius)
	Set bounds via cube that contains given sphere. More...
bool	intersects (const Point3D &pt, float sqrRad) const
	Checks if a point intersects a sphere of centre Pt, radius^2 sqrRad. More...
BoundCube	makeUnion (const BoundCube &b) const
bool	containsPt (const Point3D &pt) const
bool	contains (const BoundCube &b) const
bool	containedInSphere (const Point3D &pt, float sqrRad) const
	Is this bounding cube completely contained within a sphere centred on pt of sqr size sqrRad? More...
unsigned int	segmentTriple (unsigned int dim, float slice) const
float	getMaxDistanceToBox (const Point3D &pt) const
	Returns maximum distnace to box corners (which is an upper bound on max box distance). More...
float	getLargestDim () const
float	volume () const
void	limits ()
const BoundCube &	operator= (const BoundCube &)
void	expand (const BoundCube &b)
	Expand (as needed) volume such that the argument bounding cube is enclosed by this one. More...
void	expand (const Point3D &p)
	Expand such that point is contained in this volume. Existing volume must be valid. More...
void	expand (float v)
	Expand by a specified thickness. More...
Point3D	getVertex (unsigned int idx) const
	Obtain a corner point of the cube. More...
void	getVertices (std::vector< Point3D > &p, bool centre=false) const
	Obtain the corner points of the cube. More...
void	getPlaneIntersectVertices (const Point3D &planeOrigin, const Point3D &normal, std::vector< Point3D > &intersectPts) const
	Obtain the vertices that arise from the intersection of a plane with the cube. More...

Friends
class	K3DTree
class	K3DTreeMk2
std::ostream &	operator<< (std::ostream &stream, const BoundCube &b)

Detailed Description

A helper class to define a bounding cube.

Constructor & Destructor Documentation

BoundCube() [1/2]

BoundCube::BoundCube ( )

inline

BoundCube() [2/2]

BoundCube::BoundCube	(	const Point3D &	p1,
		const Point3D &	p2
	)

Member Function Documentation

containedInSphere()

bool BoundCube::containedInSphere	(	const Point3D &	pt,
		float	sqrRad
	)		const

Is this bounding cube completely contained within a sphere centred on pt of sqr size sqrRad?

References ASSERT, and Point3D::sqrDist().

Referenced by K3DTreeMk2::getTreesInSphere(), and K3DTreeMk2::ptsInSphere().

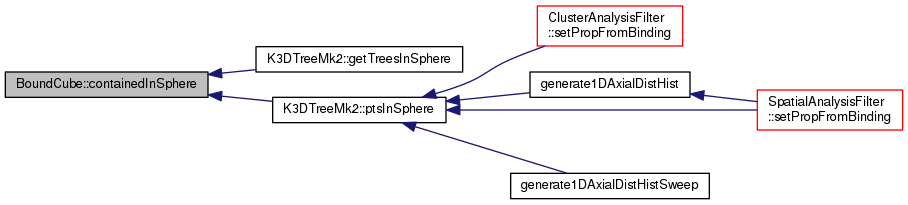

Here is the caller graph for this function:

contains()

bool BoundCube::contains

(

const BoundCube &

b

)

const

References getBounds().

Referenced by K3DTreeMk2::getBoxInTree().

Here is the caller graph for this function:

containsPt()

bool BoundCube::containsPt

(

const Point3D &

pt

)

const

References ASSERT, and Point3D::getValue().

Referenced by Mesh::getContainedNodes(), Voxels< float >::getEdgeEnds(), Voxels< float >::getInterpolatedData(), marchingCubes(), Mesh::pointsInside(), and IonClipFilter::setPropFromBinding().

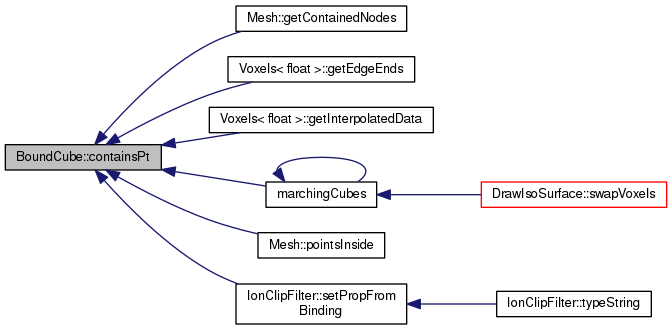

Here is the caller graph for this function:

expand() [1/3]

void BoundCube::expand

(

const BoundCube &

b

)

Expand (as needed) volume such that the argument bounding cube is enclosed by this one.

References isValid().

Referenced by Scene::addDrawable(), DrawDispList::addDrawable(), Scene::addRefDrawable(), Scene::computeSceneLimits(), countBinnedIons(), Mesh::divideMeshSurface(), IonHit::getBoundCube(), Voxels< float >::getEdgeEnds(), getRectilinearBounds(), TransformFilter::refresh(), BoundingBoxFilter::refresh(), VoxeliseFilter::refresh(), Mesh::resurface(), and IonClipFilter::setPropFromBinding().

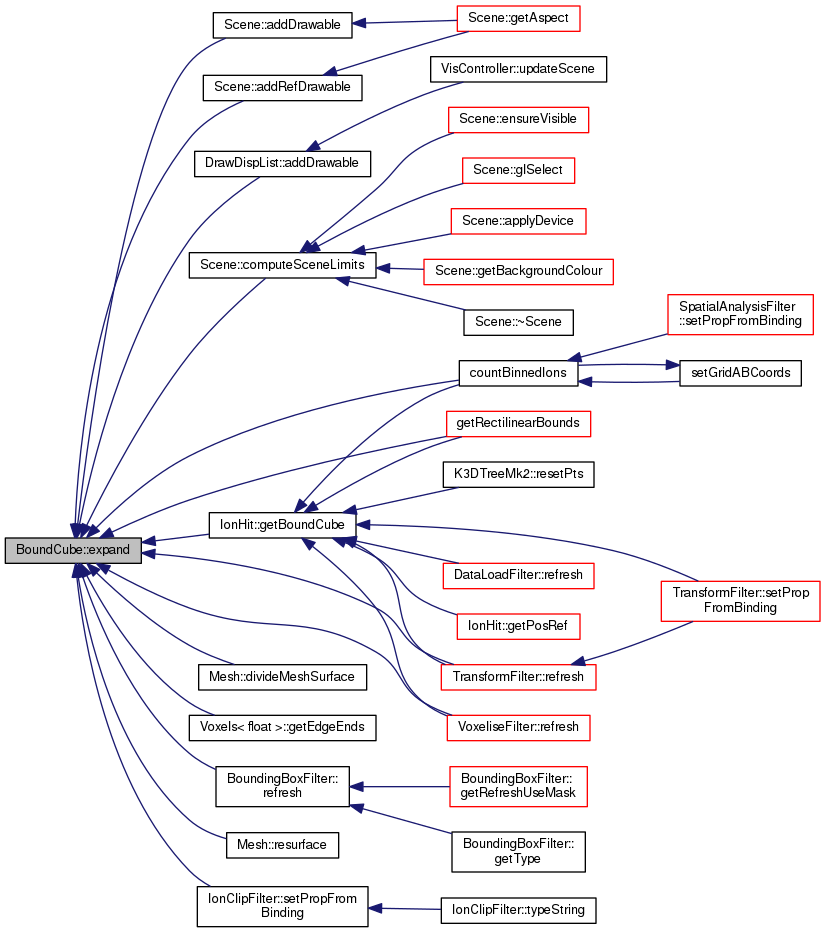

Here is the caller graph for this function:

expand() [2/3]

void BoundCube::expand

(

const Point3D &

p

)

Expand such that point is contained in this volume. Existing volume must be valid.

expand() [3/3]

void BoundCube::expand

(

float

v

)

Expand by a specified thickness.

getBound() [1/2]

float BoundCube::getBound	(	unsigned int	bound,
		unsigned int	minMax
	)		const

References ASSERT.

Referenced by countBinnedIons(), IonHit::getBoundCube(), MainWindowFrame::OnUpdateTimer(), MainWindowFrame::realignCameraButton(), setGridABCoords(), TransformFilter::setPropFromBinding(), and VoxeliseFilter::setPropFromBinding().

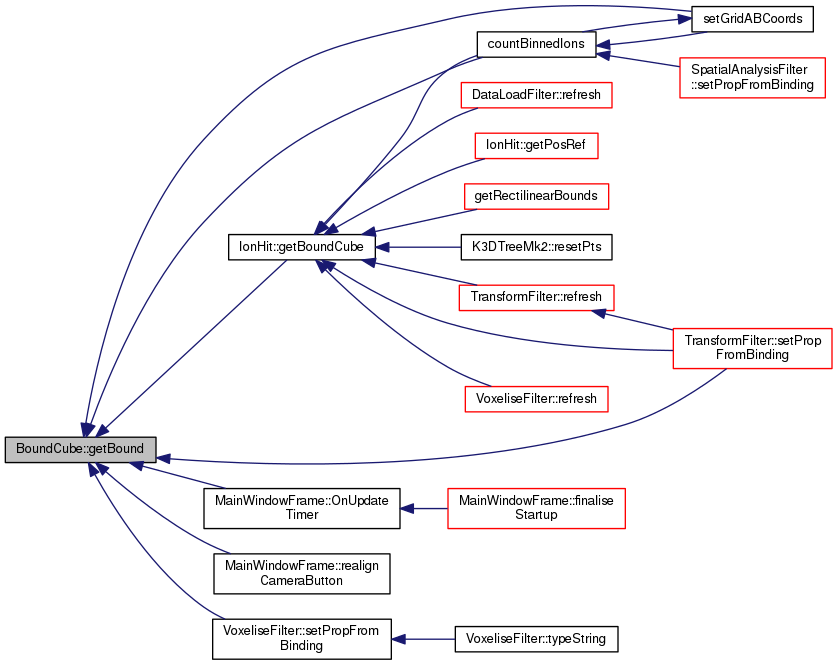

Here is the caller graph for this function:

getBound() [2/2]

void BoundCube::getBound	(	Point3D &	bound,
		unsigned int	minMax
	)		const

getBounds()

void BoundCube::getBounds	(	Point3D &	low,
		Point3D &	high
	)		const

Get the bounds.

References ASSERT, and Point3D::setValue().

Referenced by VoxeliseFilter::calculateNumBinsFromWidths(), VoxeliseFilter::calculateWidthsFromNumBins(), contains(), BoxCropEffect::enable(), BoxCropEffect::getCroppedBounds(), Voxels< float >::init(), BoundingBoxFilter::numBytesForCache(), IonInfoFilter::refresh(), VoxeliseFilter::refresh(), DrawRectPrism::setAxisAligned(), and VoxeliseFilter::setPropFromBinding().

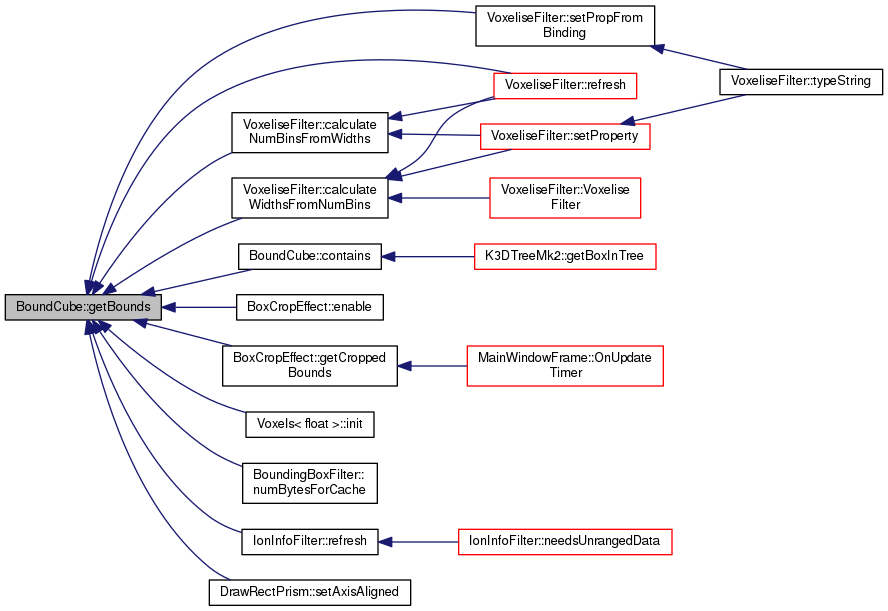

Here is the caller graph for this function:

getCentroid()

Point3D BoundCube::getCentroid

(

)

const

Return the centroid.

References ASSERT.

Referenced by Scene::applyDevice(), Scene::computeSceneLimits(), Scene::draw(), CameraLookAt::ensureVisible(), MainWindowFrame::realignCameraButton(), TransformFilter::refresh(), VoxeliseFilter::refresh(), and DrawTriangleMesh::setData().

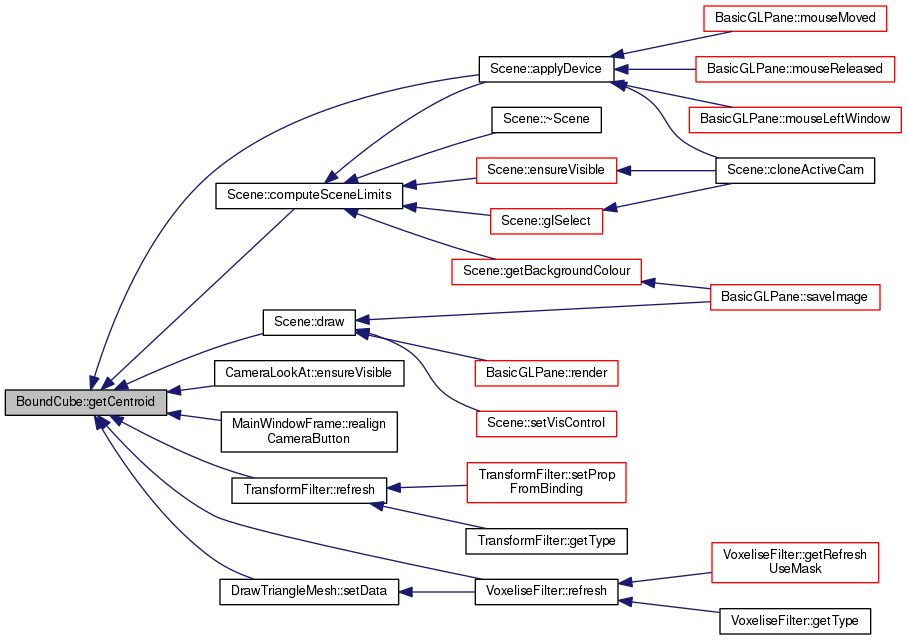

Here is the caller graph for this function:

getLargestDim()

float BoundCube::getLargestDim

(

)

const

Referenced by Scene::draw().

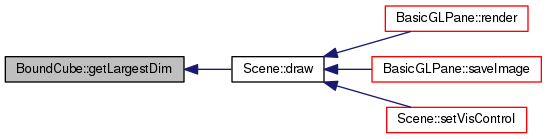

Here is the caller graph for this function:

getMaxDistanceToBox()

float BoundCube::getMaxDistanceToBox

(

const Point3D &

pt

)

const

Returns maximum distnace to box corners (which is an upper bound on max box distance).

References ASSERT, and Point3D::sqrDist().

Referenced by CameraLookAt::apply(), and BasicGLPane::saveImage().

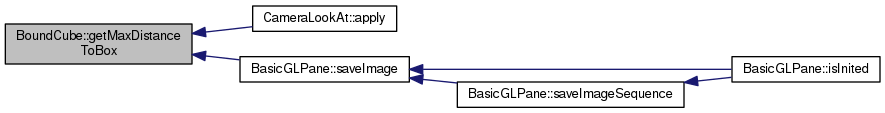

Here is the caller graph for this function:

getPlaneIntersectVertices()

void BoundCube::getPlaneIntersectVertices	(	const Point3D &	planeOrigin,
		const Point3D &	normal,
		std::vector< Point3D > &	intersectPts
	)		const

Obtain the vertices that arise from the intersection of a plane with the cube.

References ASSERT, Point3D::centroid(), clockwiseAngle(), Point3D::normalise(), and vectorMultiErase().

Referenced by VoxeliseFilter::refresh(), and rmFile().

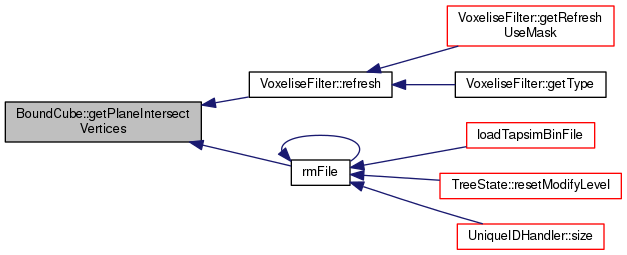

Here is the caller graph for this function:

getSize()

float BoundCube::getSize

(

unsigned int

dim

)

const

Return the side length of the cube along the specified dimension.

References ASSERT.

Referenced by countBinnedIons(), and CameraLookAt::ensureVisible().

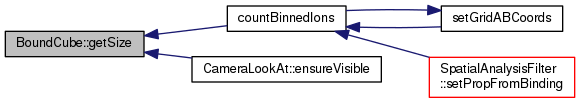

Here is the caller graph for this function:

getVertex()

Point3D BoundCube::getVertex

(

unsigned int

idx

)

const

Obtain a corner point of the cube.

References ASSERT.

getVertices()

void BoundCube::getVertices	(	std::vector< Point3D > &	p,
		bool	centre = false
	)		const

Obtain the corner points of the cube.

Referenced by DrawGLText::getBoundingBox().

Here is the caller graph for this function:

intersects()

bool BoundCube::intersects	(	const Point3D &	pt,
		float	sqrRad
	)		const

Checks if a point intersects a sphere of centre Pt, radius^2 sqrRad.

References Point3D::getValue(), Point3D::setValue(), and Point3D::sqrDist().

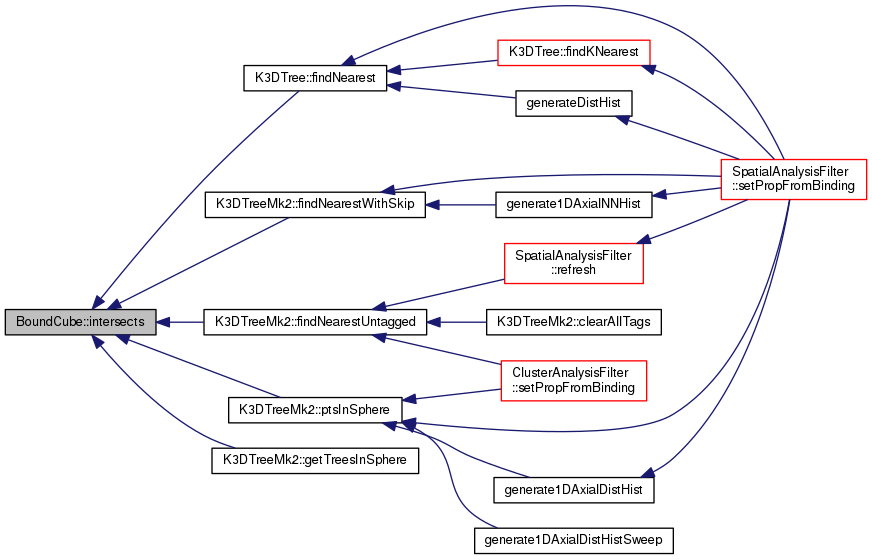

Referenced by K3DTree::findNearest(), K3DTreeMk2::findNearestUntagged(), K3DTreeMk2::findNearestWithSkip(), K3DTreeMk2::getTreesInSphere(), and K3DTreeMk2::ptsInSphere().

Here is the caller graph for this function:

isFlat()

bool BoundCube::isFlat

(

)

const

Returns true if any bound is of null thickness.

Referenced by VoxeliseFilter::refresh().

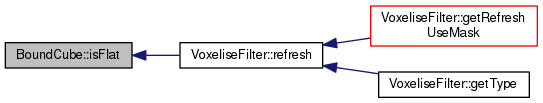

Here is the caller graph for this function:

isNumericallyBig()

bool BoundCube::isNumericallyBig

(

)

const

Returns true if any bound of datacube is considered to be "large" in magnitude compared to.

Referenced by DataLoadFilter::refresh().

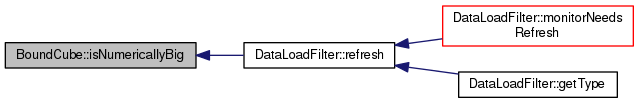

Here is the caller graph for this function:

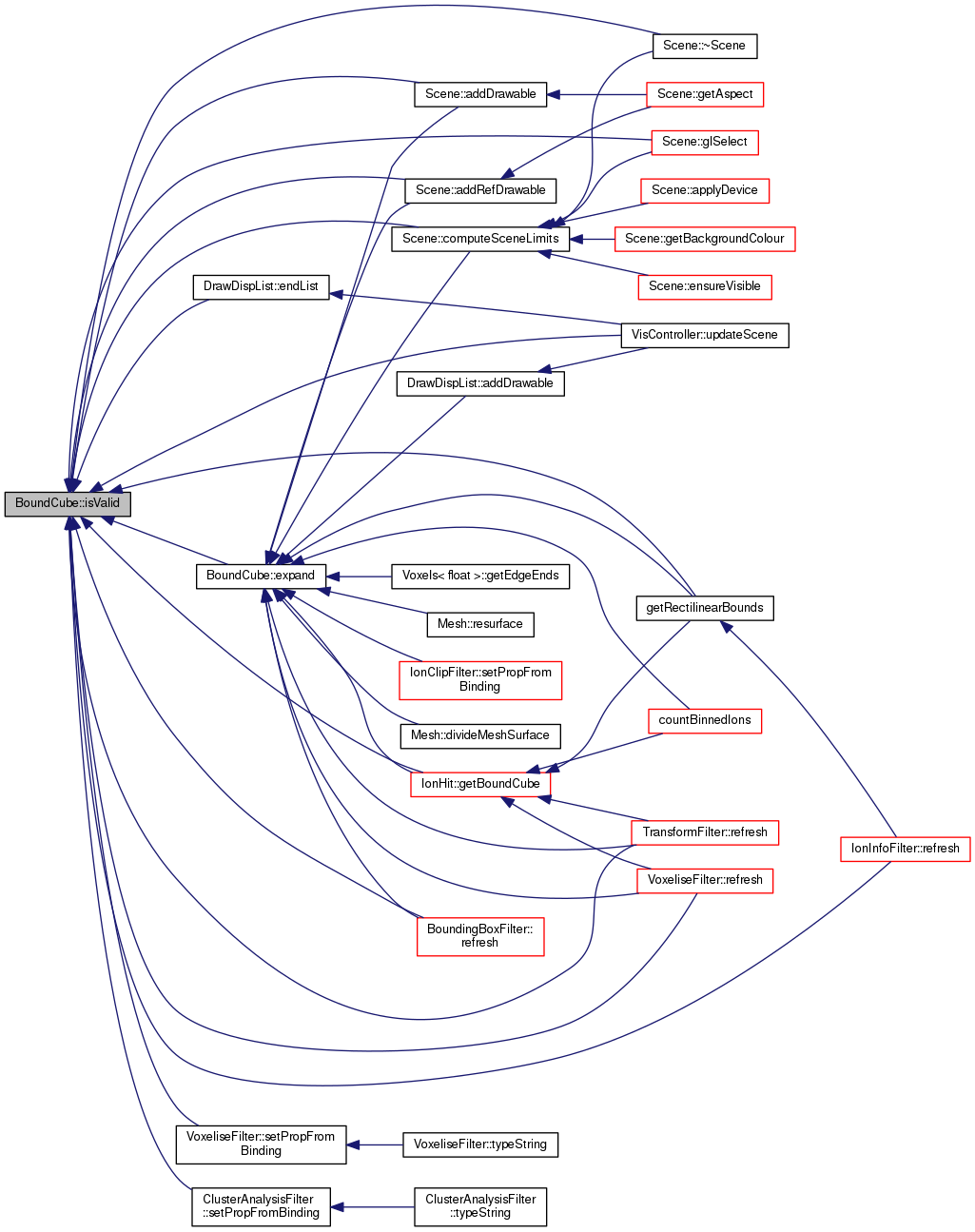

isValid()

bool BoundCube::isValid

(

)

const

Returns true if all bounds are valid.

Referenced by Scene::addDrawable(), Scene::addRefDrawable(), Scene::computeSceneLimits(), DrawDispList::endList(), expand(), IonHit::getBoundCube(), getRectilinearBounds(), Scene::glSelect(), TransformFilter::refresh(), BoundingBoxFilter::refresh(), IonInfoFilter::refresh(), VoxeliseFilter::refresh(), VoxeliseFilter::setPropFromBinding(), ClusterAnalysisFilter::setPropFromBinding(), VisController::updateScene(), and Scene::~Scene().

Here is the caller graph for this function:

limits()

void BoundCube::limits

(

)

makeUnion()

BoundCube BoundCube::makeUnion

(

const BoundCube &

b

)

const

References ColourRGBA::a(), ColourRGBA::b(), and setBound().

Referenced by K3DTreeMk2::getBoxInTree().

Here is the caller graph for this function:

operator=()

const BoundCube & BoundCube::operator=

(

const BoundCube &

b

)

segmentTriple()

unsigned int BoundCube::segmentTriple	(	unsigned int	dim,
		float	slice
	)		const

References ASSERT.

Referenced by K3DTreeMk2::getBoxInTree().

Here is the caller graph for this function:

setBound()

void BoundCube::setBound	(	unsigned int	bound,
		unsigned int	minMax,
		float	value
	)

References ASSERT.

Referenced by IonHit::getBoundCube(), DrawSphere::getBoundingBox(), K3DTreeMk2::getBoxInTree(), and makeUnion().

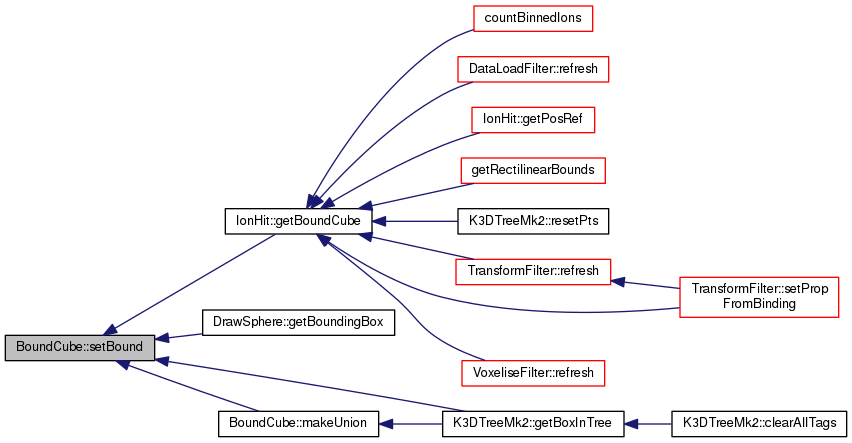

Here is the caller graph for this function:

setBounds() [1/6]

void BoundCube::setBounds ( float  xMin, float  yMin, float  zMin, float  xMax, float  yMax, float  zMax  )

inline

Referenced by K3DTreeMk2::clearAllTags(), DataLoadFilter::cloneUncached(), Scene::computeSceneLimits(), Mesh::divideMeshSurface(), generate1DAxialDistHistSweep(), generate1DAxialNNHist(), generateDistHist(), generateNNHist(), IonHit::getBoundCube(), K3DTreeMk2::getBoundCube(), DrawManyPoints::getBoundingBox(), DrawVector::getBoundingBox(), DrawTriangle::getBoundingBox(), DrawQuad::getBoundingBox(), DrawPolygon::getBoundingBox(), DrawTriangleMesh::getBoundingBox(), DrawCylinder::getBoundingBox(), DrawGLText::getBoundingBox(), DrawRectPrism::getBoundingBox(), DrawField3D::getBoundingBox(), DrawIsoSurface::getBoundingBox(), Draw2DCircle::getBoundingBox(), Mesh::getBounds(), Voxels< float >::getBounds(), BoxCropEffect::getCroppedBounds(), Voxels< float >::getEdgeEnds(), getRectilinearBounds(), marchingCubes(), Mesh::pointsInside(), Mesh::print(), BoundingBoxFilter::refresh(), VoxeliseFilter::refresh(), Mesh::resurface(), IonClipFilter::setPropFromBinding(), SpatialAnalysisFilter::setPropFromBinding(), and VoxeliseFilter::VoxeliseFilter().

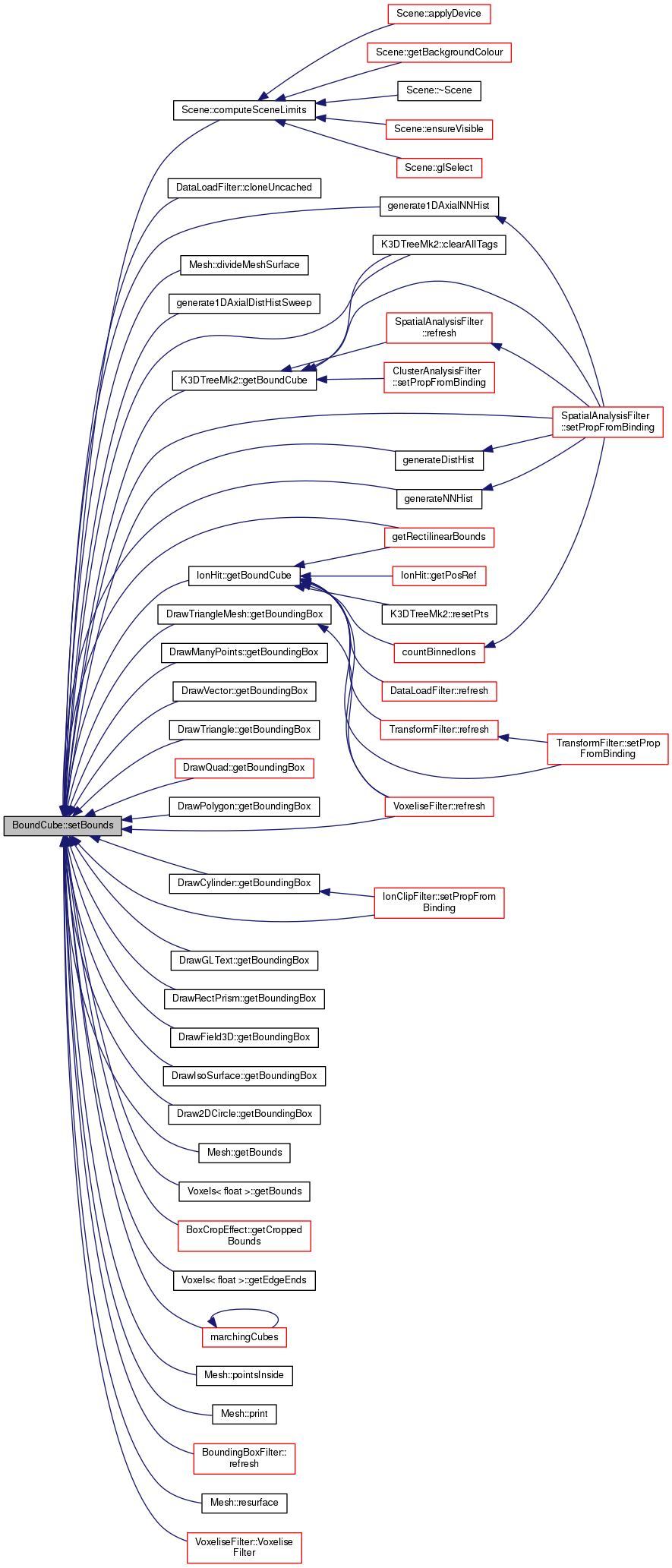

Here is the caller graph for this function:

setBounds() [2/6]

void BoundCube::setBounds ( const BoundCube &  b )

inline

setBounds() [3/6]

void BoundCube::setBounds	(	const Point3D *	ptArray,
		unsigned int	nPoints
	)

Obtain bounds from an array of Point3Ds.

setBounds() [4/6]

void BoundCube::setBounds	(	const Point3D &	p,
		const Point3D &	q
	)

Use two points to set bounds – does not need to be high,low. this is worked out/.

setBounds() [5/6]

void BoundCube::setBounds

(

const std::vector< Point3D > &

ptArray

)

Obtain bounds from an array of Point3Ds.

References ASSERT.

setBounds() [6/6]

void BoundCube::setBounds	(	const Point3D &	p,
		float	radius
	)

Set bounds via cube that contains given sphere.

References ColourRGBA::r().

setInvalid()

void BoundCube::setInvalid ( )

inline

Referenced by DrawPoint::getBoundingBox(), DrawableOverlay::getBoundingBox(), DrawAxis::getBoundingBox(), and getRectilinearBounds().

Here is the caller graph for this function:

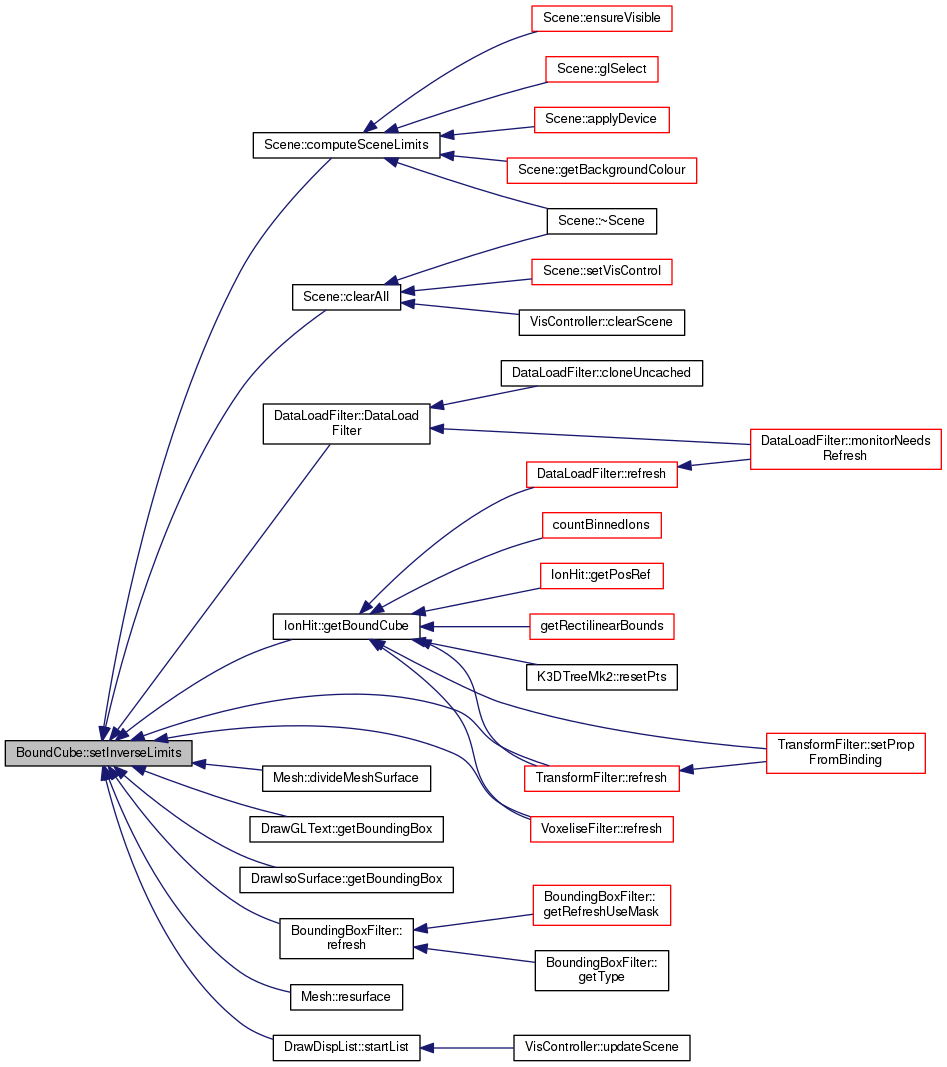

setInverseLimits()

void BoundCube::setInverseLimits

(

bool

setAsValid = false

)

Referenced by Scene::clearAll(), Scene::computeSceneLimits(), DataLoadFilter::DataLoadFilter(), Mesh::divideMeshSurface(), IonHit::getBoundCube(), DrawGLText::getBoundingBox(), DrawIsoSurface::getBoundingBox(), TransformFilter::refresh(), BoundingBoxFilter::refresh(), VoxeliseFilter::refresh(), Mesh::resurface(), and DrawDispList::startList().

Here is the caller graph for this function:

volume()

float BoundCube::volume ( ) const

inline

References operator<<().

Referenced by countBinnedIons(), IonInfoFilter::refresh(), and TransformFilter::setPropFromBinding().

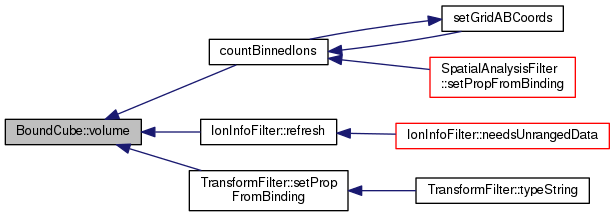

Here is the caller graph for this function:

Friends And Related Function Documentation

K3DTree

friend class K3DTree

friend

K3DTreeMk2

friend class K3DTreeMk2

friend

operator<<

std::ostream& operator<< ( std::ostream &  stream, const BoundCube &  b  )

friend

---

The documentation for this class was generated from the following files:

• basics.h
• basics.cpp
