A perspective camera that looks at a specific location. More...

#include <cameras.h>

Inheritance diagram for CameraLookAt:

Collaboration diagram for CameraLookAt:

Public Member Functions
	CameraLookAt ()
	Constructor. More...

Camera *	clone () const
	clone function More...

virtual	~CameraLookAt ()
	Destructor. More...

void	setOrigin (const Point3D &)
	Set the look at target. More...

void	setTarget (const Point3D &)
	Set the look at target. More...

Point3D	getTarget () const
	Get the look at target. More...

float	getFOV () const
	Get the camera's FOV angle (full angle across) More...

float	getNearPlane () const

void	apply (float outAspect, const BoundCube &boundCube, bool loadIdentity=true) const
	Applies the view transform. More...

void	lookAt () const
	Only apply the look-at opengl transform. More...

void	forwardsDolly (float dollyAmount)
	Do a forwards "dolly",where the camera moves along its viewing axis. More...

void	move (float leftRightAmount, float UpDownAmount)
	Move the camera origin. More...

void	pivot (float lrRad, float udRad)
	Simulate pivot of camera. More...

void	translate (float lrTrans, float udTrans)
	Move the camera origin. More...

void	roll (float rollRad)
	Roll around the view direction. More...

void	recomputeUpDirection ()
	Ensure that up direction is perpendicular to view direction. More...

void	repositionAroundTarget (unsigned int direction)

virtual void	ensureVisible (const BoundCube &b, unsigned int face=3)
	Ensure that the box is visible. More...

void	getProperties (CameraProperties &p) const
	Return the user-settable properties of the camera. More...

bool	setProperty (unsigned int key, const std::string &value)
	Set the camera property from a key & string pair. More...

bool	writeState (std::ostream &f, unsigned int format, unsigned int tabs=0) const
	Write the state of the camera. More...

bool	readState (xmlNodePtr nodePtr)
	Read the state of the camera. More...

float	getViewWidth (float depth) const

void	setFrustumDistort (float offset)

Public Member Functions inherited from Camera
	Camera ()
	constructor More...

virtual	~Camera ()
	Destructor. More...

Point3D	getOrigin () const
	Return the origin of the camera. More...

Point3D	getViewDirection () const
	Return the view direction for the camera. More...

Point3D	getUpDirection () const
	Return the up direction for the camera. More...

unsigned int	getProjectionMode () const
	return the projection mode More...

float	getOrthoScale () const

void	setViewDirection (const Point3D &)
	set the direction that the camera looks towards More...

void	setUpDirection (const Point3D &)
	set the direction that the camera considers "up" More...

void	setUserString (const std::string &newString)
	Set the user string. More...

std::string	getUserString () const
	Get the user string. More...

unsigned int	type () const

Protected Member Functions
void	recomputeViewDirection ()

Protected Attributes
Point3D	target
	Location for camera to look at. More...

float	fovAngle
	Perspective FOV. More...

float	nearPlane
	Near clipping plane distance. More...

float	farPlane
	Far plane is computed on-the-fly. cannot be set directly. Oh no! mutable. gross! More...

float	frustumDistortion
	Distort to the viewing frustum. (eg for stero) ( a frustum is a rectangular pyramid with the top cut off) More...

Protected Attributes inherited from Camera
bool	lock

Point3D	origin
	Camera location. More...

Point3D	viewDirection
	Direction camera is looking in. More...

Point3D	upDirection
	Up direction for camera (required to work out "roll") More...

unsigned int	projectionMode
	Projection mode (otho, perspective...)_. More...

float	orthoScale
	The current orthographic scaling. More...

unsigned int	typeNum
	Type number. More...

std::string	userString
	user string, e.g. camera name More...

Friends
std::ostream &	operator<< (std::ostream &stream, const CameraLookAt &)
	Streaming output operator, presents human readable text. More...

Detailed Description

A perspective camera that looks at a specific location.

Constructor & Destructor Documentation

◆ CameraLookAt()

CameraLookAt::CameraLookAt ( )

Constructor.

References CAM_LOOKAT, Camera::origin, PROJECTION_MODE_PERSPECTIVE, Camera::projectionMode, Camera::typeNum, Camera::upDirection, and Camera::viewDirection.

Referenced by clone().

Here is the caller graph for this function:

◆ ~CameraLookAt()

CameraLookAt::~CameraLookAt ( )

virtual

Destructor.

Member Function Documentation

◆ apply()

void CameraLookAt::apply	(	float	outAspect,
		const BoundCube &	boundCube,
		bool	loadIdentity = `true`
	)		const

virtual

Applies the view transform.

Implements Camera.

References ASSERT, farPlane, fovAngle, BoundCube::getMaxDistanceToBox(), lookAt(), nearPlane, Camera::origin, Camera::orthoScale, PROJECTION_MODE_ORTHOGONAL, PROJECTION_MODE_PERSPECTIVE, Camera::projectionMode, Point3D::sqrDist(), and target.

◆ clone()

Camera * CameraLookAt::clone ( ) const

virtual

clone function

Implements Camera.

References CameraLookAt(), farPlane, fovAngle, Camera::lock, nearPlane, Camera::origin, Camera::orthoScale, Camera::projectionMode, target, Camera::typeNum, Camera::upDirection, Camera::userString, and Camera::viewDirection.

◆ ensureVisible()

void CameraLookAt::ensureVisible	(	const BoundCube &	b,
		unsigned int	face = `3`
	)

virtual

Ensure that the box is visible.

Face is set by cube net 0 1 2 3 4 5 2 is the face directed to the +ve x axis, with the "up"" vector on the 3 aligned to z, so "0" is perpendicular to the Z axis and is "visible"

Implements Camera.

References ASSERT, CAMERA_DIR_XMINUS, CAMERA_DIR_XPLUS, CAMERA_DIR_YMINUS, CAMERA_DIR_YPLUS, CAMERA_DIR_ZMINUS, CAMERA_DIR_ZPLUS, fovAngle, BoundCube::getCentroid(), BoundCube::getSize(), Camera::lock, M_PI, nearPlane, Camera::origin, Camera::orthoScale, PROJECTION_MODE_PERSPECTIVE, Camera::projectionMode, recomputeUpDirection(), recomputeViewDirection(), Point3D::sqrDist(), target, and Camera::upDirection.

◆ forwardsDolly()

void CameraLookAt::forwardsDolly ( float dollyAmount )

virtual

Do a forwards "dolly",where the camera moves along its viewing axis.

Reimplemented from Camera.

References Camera::lock, Camera::origin, ORTHO_SPEED_HACK, Camera::orthoScale, PROJECTION_MODE_PERSPECTIVE, Camera::projectionMode, Point3D::sqrDist(), target, and Camera::viewDirection.

◆ getFOV()

float CameraLookAt::getFOV ( ) const

inline

Get the camera's FOV angle (full angle across)

Referenced by BasicGLPane::saveImage().

Here is the caller graph for this function:

◆ getNearPlane()

float CameraLookAt::getNearPlane ( ) const

inline

References CameraProperty::key, and tabs().

Referenced by BasicGLPane::saveImage().

Here is the caller graph for this function:

◆ getProperties()

void CameraLookAt::getProperties ( CameraProperties & p ) const

virtual

◆ getTarget()

Point3D CameraLookAt::getTarget ( ) const

Get the look at target.

References target.

◆ getViewWidth()

float CameraLookAt::getViewWidth ( float depth ) const

References ASSERT, fovAngle, M_PI, Camera::orthoScale, PROJECTION_MODE_ORTHOGONAL, PROJECTION_MODE_PERSPECTIVE, and Camera::projectionMode.

◆ lookAt()

void CameraLookAt::lookAt ( ) const

Only apply the look-at opengl transform.

References ASSERT, Camera::origin, target, and Camera::upDirection.

Referenced by apply().

Here is the caller graph for this function:

◆ move()

void CameraLookAt::move	(	float	leftRightAmount,
		float	UpDownAmount
	)

virtual

Move the camera origin.

Reimplemented from Camera.

References Point3D::crossProd(), Point3f::fx, Point3f::fy, Point3f::fz, Camera::lock, Point3D::normalise(), Camera::origin, quat_rot(), recomputeViewDirection(), target, Camera::upDirection, and Camera::viewDirection.

◆ pivot()

void CameraLookAt::pivot	(	float	lrRad,
		float	udRad
	)

virtual

Simulate pivot of camera.

Reimplemented from Camera.

References Point3D::crossProd(), Point3f::fx, Point3f::fy, Point3f::fz, Camera::lock, Point3D::normalise(), Camera::origin, quat_rot(), recomputeUpDirection(), recomputeViewDirection(), target, Camera::upDirection, and Camera::viewDirection.

◆ readState()

bool CameraLookAt::readState ( xmlNodePtr nodePtr )

virtual

Read the state of the camera.

Implements Camera.

References fovAngle, Camera::lock, nearPlane, Camera::origin, Camera::orthoScale, PROJECTION_MODE_ENUM_END, Camera::projectionMode, recomputeViewDirection(), stream_cast(), target, Camera::upDirection, Camera::userString, XMLGetNextElemAttrib(), and XMLHelpFwdToElem().

◆ recomputeUpDirection()

void CameraLookAt::recomputeUpDirection ( )

Ensure that up direction is perpendicular to view direction.

References Point3D::crossProd(), Point3D::normalise(), Camera::upDirection, and Camera::viewDirection.

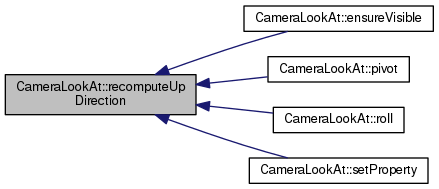

Referenced by ensureVisible(), pivot(), roll(), and setProperty().

Here is the caller graph for this function:

◆ recomputeViewDirection()

void CameraLookAt::recomputeViewDirection ( )

protected

References Point3D::normalise(), Camera::origin, target, and Camera::viewDirection.

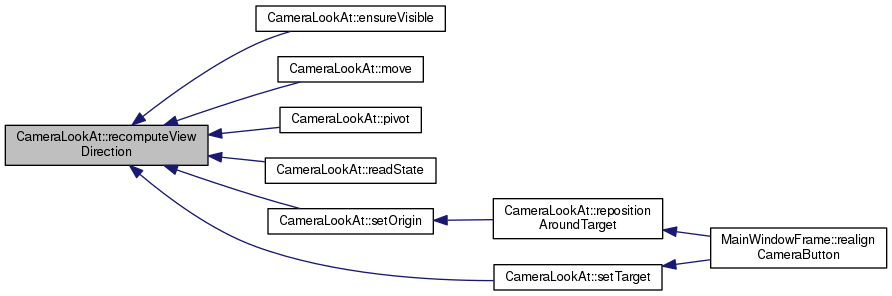

Referenced by ensureVisible(), move(), pivot(), readState(), setOrigin(), and setTarget().

Here is the caller graph for this function:

◆ repositionAroundTarget()

void CameraLookAt::repositionAroundTarget ( unsigned int direction )

References ASSERT, CAMERA_DIR_XMINUS, CAMERA_DIR_XPLUS, CAMERA_DIR_YMINUS, CAMERA_DIR_YPLUS, CAMERA_DIR_ZMINUS, CAMERA_DIR_ZPLUS, Camera::origin, setOrigin(), Point3D::sqrDist(), and target.

Referenced by MainWindowFrame::realignCameraButton().

Here is the caller graph for this function:

◆ roll()

void CameraLookAt::roll ( float roll )

virtual

Roll around the view direction.

Implements Camera.

References Point3f::fx, Point3f::fy, Point3f::fz, Camera::lock, quat_rot(), recomputeUpDirection(), Camera::upDirection, and Camera::viewDirection.

◆ setFrustumDistort()

void CameraLookAt::setFrustumDistort ( float offset )

inline

◆ setOrigin()

void CameraLookAt::setOrigin ( const Point3D & newOrigin )

virtual

Set the look at target.

Reimplemented from Camera.

References ASSERT, Camera::lock, Camera::origin, recomputeViewDirection(), Point3D::sqrDist(), and target.

Referenced by repositionAroundTarget().

Here is the caller graph for this function:

◆ setProperty()

bool CameraLookAt::setProperty	(	unsigned int	key,
		const std::string &	value
	)

virtual

Set the camera property from a key & string pair.

Implements Camera.

References ASSERT, CAMERA_KEY_LOOKAT_FOV, CAMERA_KEY_LOOKAT_LOCK, CAMERA_KEY_LOOKAT_ORIGIN, CAMERA_KEY_LOOKAT_ORTHOSCALE, CAMERA_KEY_LOOKAT_PROJECTIONMODE, CAMERA_KEY_LOOKAT_TARGET, CAMERA_KEY_LOOKAT_UPDIRECTION, Point3D::crossProd(), fovAngle, Camera::lock, Camera::origin, Camera::orthoScale, Point3D::parse(), PROJECTION_MODE_ORTHOGONAL, PROJECTION_MODE_PERSPECTIVE, Camera::projectionMode, recomputeUpDirection(), Point3D::sqrDist(), Point3D::sqrMag(), stream_cast(), target, TRANS, Camera::upDirection, and Camera::viewDirection.

◆ setTarget()

void CameraLookAt::setTarget ( const Point3D & pt )

Set the look at target.

References ASSERT, Camera::origin, recomputeViewDirection(), Point3D::sqrDist(), and target.

Referenced by MainWindowFrame::realignCameraButton().

Here is the caller graph for this function:

◆ translate()

void CameraLookAt::translate	(	float	leftRightAmount,
		float	UpDownAmount
	)

virtual

Move the camera origin.

Reimplemented from Camera.

References Point3D::crossProd(), fovAngle, Camera::lock, M_PI, Camera::origin, PROJECTION_MODE_PERSPECTIVE, Camera::projectionMode, Point3D::sqrDist(), target, Camera::upDirection, and Camera::viewDirection.

◆ writeState()

bool CameraLookAt::writeState	(	std::ostream &	f,
		unsigned int	format,
		unsigned int	tabs = `0`
	)		const

virtual

Write the state of the camera.

Implements Camera.

References ASSERT, escapeXML(), fovAngle, Camera::lock, nearPlane, Camera::origin, Camera::orthoScale, Camera::projectionMode, STATE_FORMAT_XML, tabs(), target, Camera::upDirection, and Camera::userString.

Friends And Related Function Documentation

◆ operator<<

std::ostream& operator<<	(	std::ostream &	stream,
		const CameraLookAt &	c
	)

friend

Streaming output operator, presents human readable text.

Member Data Documentation

◆ farPlane

float CameraLookAt::farPlane

mutableprotected

Far plane is computed on-the-fly. cannot be set directly. Oh no! mutable. gross!

Referenced by apply(), and clone().

◆ fovAngle

float CameraLookAt::fovAngle

protected

Perspective FOV.

Referenced by apply(), clone(), ensureVisible(), getProperties(), getViewWidth(), operator<<(), readState(), setProperty(), translate(), and writeState().

◆ frustumDistortion

float CameraLookAt::frustumDistortion

protected

Distort to the viewing frustum. (eg for stero) ( a frustum is a rectangular pyramid with the top cut off)

◆ nearPlane

float CameraLookAt::nearPlane

protected

Near clipping plane distance.

Referenced by apply(), clone(), ensureVisible(), operator<<(), readState(), and writeState().

◆ target

Point3D CameraLookAt::target

protected

Location for camera to look at.

Referenced by apply(), clone(), ensureVisible(), forwardsDolly(), getProperties(), getTarget(), lookAt(), move(), operator<<(), pivot(), readState(), recomputeViewDirection(), repositionAroundTarget(), setOrigin(), setProperty(), setTarget(), translate(), and writeState().

The documentation for this class was generated from the following files:
