An abstract base class for a camera. More...

#include <cameras.h>

Inheritance diagram for Camera:

Collaboration diagram for Camera:

Public Member Functions
	Camera ()
	constructor More...

virtual	~Camera ()
	Destructor. More...

virtual Camera *	clone () const =0
	Duplication routine. Must delete returned pointer manually. More...

Point3D	getOrigin () const
	Return the origin of the camera. More...

Point3D	getViewDirection () const
	Return the view direction for the camera. More...

Point3D	getUpDirection () const
	Return the up direction for the camera. More...

unsigned int	getProjectionMode () const
	return the projection mode More...

float	getOrthoScale () const

virtual void	setOrigin (const Point3D &)
	Set the camera's position. More...

void	setViewDirection (const Point3D &)
	set the direction that the camera looks towards More...

void	setUpDirection (const Point3D &)
	set the direction that the camera considers "up" More...

void	setUserString (const std::string &newString)
	Set the user string. More...

std::string	getUserString () const
	Get the user string. More...

virtual void	forwardsDolly (float dollyAmount)
	Do a forwards "dolly",where the camera moves along its viewing axis. In ortho mode, instead of moving along axis, a scaling is performed. More...

virtual void	move (float leftRightAmount, float UpDownAmount)
	Move the camera origin. More...

virtual void	translate (float leftRightAmount, float UpDownAmount)
	Move the camera origin. More...

virtual void	pivot (float rollAroundAcross, float rollaroundUp)
	pivot the camera More...

virtual void	roll (float roll)=0
	Roll around the view direction. More...

virtual void	apply (float outputRatio, const BoundCube &b, bool loadIdentity=true) const =0
	Applies the camera settings to openGL. Ensures the far planes. More...

virtual void	ensureVisible (const BoundCube &b, unsigned int face=3)=0
	Ensures that the given boundingbox should look nice, and be visible. More...

virtual void	getProperties (CameraProperties &p) const =0
	Obtain the properties specific to a camera. More...

virtual bool	setProperty (unsigned int key, const std::string &value)=0
	Set the camera property from a key & string pair. More...

unsigned int	type () const

virtual bool	writeState (std::ostream &f, unsigned int format, unsigned int tabs) const =0
	Write the state of the camera. More...

virtual bool	readState (xmlNodePtr nodePtr)=0
	Read the state of the camera from XML document. More...

Protected Attributes
bool	lock

Point3D	origin
	Camera location. More...

Point3D	viewDirection
	Direction camera is looking in. More...

Point3D	upDirection
	Up direction for camera (required to work out "roll") More...

unsigned int	projectionMode
	Projection mode (otho, perspective...)_. More...

float	orthoScale
	The current orthographic scaling. More...

unsigned int	typeNum
	Type number. More...

std::string	userString
	user string, e.g. camera name More...

Friends
std::ostream &	operator<< (std::ostream &stream, const Camera &)
	Streaming output operator, presents human readable text. More...

Detailed Description

An abstract base class for a camera.

Constructor & Destructor Documentation

◆ Camera()

Camera::Camera ( )

constructor

◆ ~Camera()

Camera::~Camera ( )

virtual

Destructor.

Member Function Documentation

◆ apply()

virtual void Camera::apply	(	float	outputRatio,
		const BoundCube &	b,
		bool	loadIdentity = `true`
	)		const

pure virtual

Applies the camera settings to openGL. Ensures the far planes.

Implemented in CameraLookAt.

Referenced by Scene::glSelect(), and Scene::hasOverlays().

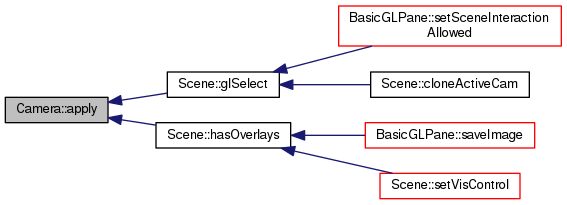

Here is the caller graph for this function:

◆ clone()

virtual Camera* Camera::clone ( ) const

pure virtual

Duplication routine. Must delete returned pointer manually.

Implemented in CameraLookAt.

Referenced by AnalysisState::addCam(), AnalysisState::addCamByClone(), Scene::cloneActiveCam(), AnaglyphEffect::enable(), BasicGLPane::saveImageSequence(), Scene::setActiveCamByClone(), AnalysisState::setCameraByClone(), and Scene::setTempCam().

Here is the caller graph for this function:

◆ ensureVisible()

virtual void Camera::ensureVisible	(	const BoundCube &	b,
		unsigned int	face = `3`
	)

pure virtual

Ensures that the given boundingbox should look nice, and be visible.

Implemented in CameraLookAt.

Referenced by Scene::ensureVisible().

Here is the caller graph for this function:

◆ forwardsDolly()

void Camera::forwardsDolly ( float dollyAmount )

virtual

Do a forwards "dolly",where the camera moves along its viewing axis. In ortho mode, instead of moving along axis, a scaling is performed.

Reimplemented in CameraLookAt.

References lock, origin, and viewDirection.

Referenced by BasicGLPane::keyReleased(), and BasicGLPane::mouseWheelMoved().

Here is the caller graph for this function:

◆ getOrigin()

Point3D Camera::getOrigin ( ) const

Return the origin of the camera.

References origin.

Referenced by Scene::applyDevice(), DrawGLText::draw(), DrawField3D::draw(), DrawIsoSurface::draw(), and BasicGLPane::saveImage().

Here is the caller graph for this function:

◆ getOrthoScale()

float Camera::getOrthoScale ( ) const

inline

Referenced by BasicGLPane::saveImage().

Here is the caller graph for this function:

◆ getProjectionMode()

unsigned int Camera::getProjectionMode ( ) const

inline

return the projection mode

Referenced by BasicGLPane::saveImage().

Here is the caller graph for this function:

◆ getProperties()

virtual void Camera::getProperties ( CameraProperties & p ) const

pure virtual

Obtain the properties specific to a camera.

Implemented in CameraLookAt.

Referenced by updateCameraPropertyGrid().

Here is the caller graph for this function:

◆ getUpDirection()

Point3D Camera::getUpDirection ( ) const

Return the up direction for the camera.

References upDirection.

Referenced by Scene::applyDevice(), DrawGLText::draw(), and BoxCropEffect::enable().

Here is the caller graph for this function:

◆ getUserString()

std::string Camera::getUserString ( ) const

inline

Get the user string.

References CameraProperty::key.

◆ getViewDirection()

Point3D Camera::getViewDirection ( ) const

Return the view direction for the camera.

References viewDirection.

Referenced by Scene::applyDevice(), BoxCropEffect::enable(), and Scene::hasOverlays().

Here is the caller graph for this function:

◆ move()

void Camera::move	(	float	leftRightAmount,
		float	UpDownAmount
	)

virtual

Move the camera origin.

Reimplemented in CameraLookAt.

References Point3D::crossProd(), lock, origin, upDirection, and viewDirection.

Referenced by BasicGLPane::mouseMoved(), BasicGLPane::saveImageSequence(), and translate().

Here is the caller graph for this function:

◆ pivot()

void Camera::pivot	(	float	rollAroundAcross,
		float	rollaroundUp
	)

virtual

pivot the camera

Reimplemented in CameraLookAt.

References Point3D::crossProd(), Point3f::fx, Point3f::fy, Point3f::fz, lock, quat_rot(), upDirection, and viewDirection.

Referenced by BasicGLPane::mouseMoved().

Here is the caller graph for this function:

◆ readState()

virtual bool Camera::readState ( xmlNodePtr nodePtr )

pure virtual

Read the state of the camera from XML document.

Implemented in CameraLookAt.

◆ roll()

virtual void Camera::roll ( float roll )

pure virtual

Roll around the view direction.

Implemented in CameraLookAt.

Referenced by BasicGLPane::mouseMoved().

Here is the caller graph for this function:

◆ setOrigin()

void Camera::setOrigin ( const Point3D & pt )

virtual

Set the camera's position.

Reimplemented in CameraLookAt.

References lock, and origin.

◆ setProperty()

virtual bool Camera::setProperty	(	unsigned int	key,
		const std::string &	value
	)

pure virtual

Set the camera property from a key & string pair.

Implemented in CameraLookAt.

◆ setUpDirection()

void Camera::setUpDirection ( const Point3D & pt )

set the direction that the camera considers "up"

References lock, Point3D::normalise(), and upDirection.

Referenced by MainWindowFrame::realignCameraButton().

Here is the caller graph for this function:

◆ setUserString()

void Camera::setUserString ( const std::string & newString )

inline

Set the user string.

Referenced by AnalysisState::addCam().

Here is the caller graph for this function:

◆ setViewDirection()

void Camera::setViewDirection ( const Point3D & pt )

set the direction that the camera looks towards

References lock, Point3D::normalise(), and viewDirection.

◆ translate()

void Camera::translate	(	float	leftRightAmount,
		float	UpDownAmount
	)

virtual

Move the camera origin.

Reimplemented in CameraLookAt.

References lock, and move().

Referenced by AnaglyphEffect::enable(), and BasicGLPane::mouseMoved().

Here is the caller graph for this function:

◆ type()

unsigned int Camera::type ( ) const

inline

References tabs().

Referenced by Scene::applyDevice(), AnaglyphEffect::enable(), Scene::finaliseCam(), MainWindowFrame::realignCameraButton(), and BasicGLPane::saveImage().

Here is the caller graph for this function:

◆ writeState()

virtual bool Camera::writeState	(	std::ostream &	f,
		unsigned int	format,
		unsigned int	tabs
	)		const

pure virtual

Write the state of the camera.

Implemented in CameraLookAt.

Friends And Related Function Documentation

◆ operator<<

std::ostream& operator<<	(	std::ostream &	stream,
		const Camera &	c
	)

friend

Streaming output operator, presents human readable text.

Member Data Documentation

◆ lock

bool Camera::lock

protected

Referenced by CameraLookAt::clone(), CameraLookAt::ensureVisible(), forwardsDolly(), CameraLookAt::forwardsDolly(), CameraLookAt::getProperties(), move(), CameraLookAt::move(), pivot(), CameraLookAt::pivot(), CameraLookAt::readState(), CameraLookAt::roll(), setOrigin(), CameraLookAt::setOrigin(), CameraLookAt::setProperty(), setUpDirection(), setViewDirection(), translate(), CameraLookAt::translate(), and CameraLookAt::writeState().

◆ origin

◆ orthoScale

float Camera::orthoScale

protected

The current orthographic scaling.

Referenced by CameraLookAt::apply(), CameraLookAt::clone(), CameraLookAt::ensureVisible(), CameraLookAt::forwardsDolly(), CameraLookAt::getProperties(), CameraLookAt::getViewWidth(), CameraLookAt::readState(), CameraLookAt::setProperty(), and CameraLookAt::writeState().

◆ projectionMode

unsigned int Camera::projectionMode

protected

Projection mode (otho, perspective...)_.

Referenced by CameraLookAt::apply(), CameraLookAt::CameraLookAt(), CameraLookAt::clone(), CameraLookAt::ensureVisible(), CameraLookAt::forwardsDolly(), CameraLookAt::getProperties(), CameraLookAt::getViewWidth(), CameraLookAt::readState(), CameraLookAt::setProperty(), CameraLookAt::translate(), and CameraLookAt::writeState().

◆ typeNum

unsigned int Camera::typeNum

protected

Type number.

Referenced by CameraLookAt::CameraLookAt(), and CameraLookAt::clone().

◆ upDirection

Point3D Camera::upDirection

protected

Up direction for camera (required to work out "roll")

Referenced by CameraLookAt::CameraLookAt(), CameraLookAt::clone(), CameraLookAt::ensureVisible(), CameraLookAt::getProperties(), getUpDirection(), CameraLookAt::lookAt(), move(), CameraLookAt::move(), operator<<(), pivot(), CameraLookAt::pivot(), CameraLookAt::readState(), CameraLookAt::recomputeUpDirection(), CameraLookAt::roll(), CameraLookAt::setProperty(), setUpDirection(), CameraLookAt::translate(), and CameraLookAt::writeState().

◆ userString

std::string Camera::userString

protected

user string, e.g. camera name

Referenced by CameraLookAt::clone(), CameraLookAt::readState(), and CameraLookAt::writeState().

◆ viewDirection

Point3D Camera::viewDirection

protected

Direction camera is looking in.

Referenced by CameraLookAt::CameraLookAt(), CameraLookAt::clone(), forwardsDolly(), CameraLookAt::forwardsDolly(), getViewDirection(), move(), CameraLookAt::move(), operator<<(), pivot(), CameraLookAt::pivot(), CameraLookAt::recomputeUpDirection(), CameraLookAt::recomputeViewDirection(), CameraLookAt::roll(), CameraLookAt::setProperty(), setViewDirection(), and CameraLookAt::translate().

The documentation for this class was generated from the following files:
