drawables.h File Reference

#include <GL/glu.h>
#include <sys/time.h>
#include "textures.h"
#include "cameras.h"
#include "isoSurface.h"
#include <ft2build.h>
#include <FTGL/ftgl.h>

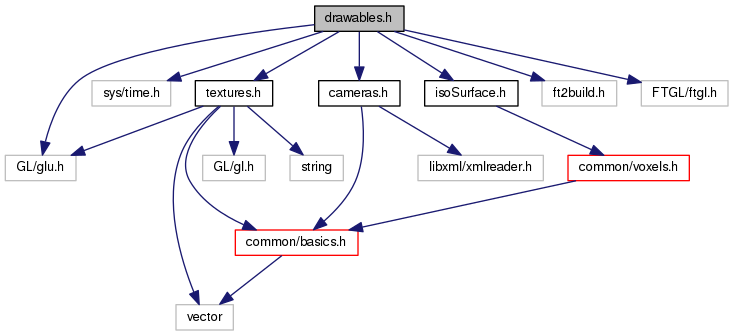

Include dependency graph for drawables.h:

This graph shows which files directly or indirectly include this file:

Classes
class	Voxels< T >
	Template class that stores 3D voxel data. More...
struct	RGBFloat
struct	TRI_IDX
class	DrawableObj
	An abstract bas class for drawing primitives. More...
class	DrawPoint
class	DrawManyPoints
	A point drawing class - for many points of same size & colour. More...
class	DrawVector
	Draw a vector. More...
class	DrawTriangle
	A single colour triangle. More...
class	DrawQuad
	A smooth coloured quad. More...
class	DrawTexturedQuad
class	DrawPolygon
class	DrawTriangleMesh
class	DrawSphere
	A sphere drawing. More...
class	DrawCylinder
	A tapered cylinder drawing class. More...
class	DrawDispList
	A display list generating class. More...
class	DrawGLText
	A class to draw text obects using FTGL. More...
class	DrawRectPrism
	A class to draw rectangluar prisms. More...
class	DrawableOverlay
class	DrawColourBarOverlay
class	DrawTexturedQuadOverlay
	A class to hande textures to draw. More...
class	DrawAnimatedOverlay
	Multi-frame texture - Animated overlay. More...
class	DrawProgressCircleOverlay
	Draw a progress (segments with completion) overlay. More...
class	DrawPointLegendOverlay
struct	RGBThis
class	DrawField3D
	This class allows for the visualisation of 3D scalar fields. More...
class	DrawIsoSurface
class	DrawAxis
class	Draw2DCircle

Enumerations
enum	{   FTGL_BITMAP =0, FTGL_PIXMAP, FTGL_OUTLINE, FTGL_POLYGON,   FTGL_EXTRUDE, FTGL_TEXTURE }
enum	{ DRAWTEXT_ALIGN_LEFT, DRAWTEXT_ALIGN_CENTRE, DRAWTEXT_ALIGN_RIGHT, DRAWTEXT_ALIGN_ENUM_END }
	Text aligment modes for DrawGLText. More...
enum	{ DRAW_WIREFRAME, DRAW_FLAT, DRAW_SMOOTH, DRAW_END_ENUM }
	Primitve drawing mode. (wireframe/solid) More...
enum	{ AXIS_IN_SPACE }
	Axis styles. More...
enum	{ POLYGON_DRAW_OUTLINE, POLYGON_DRAW_ENUM_END }
	Polygon drawing styles. More...
enum	{ TRIMESH_DRAW_SURF, TRIMESH_DRAW_ENUM_END }
	Triangle mesh drawing styles. More...
enum	{   DRAW_TYPE_POINT, DRAW_TYPE_MANYPOINT, DRAW_TYPE_VECTOR, DRAW_TYPE_TRIANGLE,   DRAW_TYPE_QUAD, DRAW_TYPE_POLYGON, DRAW_TYPE_SPHERE, DRAW_TYPE_CYLINDER,   DRAW_TYPE_DISPLAYLIST, DRAW_TYPE_GLTEXT, DRAW_TYPE_2D_CIRCLE, DRAW_TYPE_RECTPRISM,   DRAW_TYPE_COLOURBAR, DRAW_TYPE_TEXTUREDOVERLAY, DRAW_TYPE_ANIMATEDOVERLAY, DRAW_TYPE_FIELD3D,   DRAW_TYPE_ISOSURFACE, DRAW_TYPE_AXIS, DRAW_TYPE_LEGENDOVERLAY, DRAW_TYPE_PROGRESSCIRCLE_OVERLAY,   DRAW_TYPE_TRIANGLE_MESH }
	Drawable types. More...
enum	{   DRAW_SPHERE_BIND_ORIGIN, DRAW_SPHERE_BIND_RADIUS, DRAW_VECTOR_BIND_ORIENTATION, DRAW_VECTOR_BIND_ORIGIN_ONLY,   DRAW_VECTOR_BIND_ORIGIN, DRAW_VECTOR_BIND_TARGET, DRAW_CYLINDER_BIND_ORIGIN, DRAW_CYLINDER_BIND_DIRECTION,   DRAW_CYLINDER_BIND_RADIUS, DRAW_RECT_BIND_TRANSLATE, DRAW_RECT_BIND_CORNER_MOVE, DRAW_TEXT_BIND_ORIGIN,   DRAW_QUAD_BIND_ORIGIN, DRAW_TRIMESH_BIND_ORIGIN, DRAW_BIND_ENUM_END }
	Binding enums. Needed to bind drawable selection. More...
enum	{ VOLUME_POINTS =0 }
	Drawing mode enumeration for scalar field. More...

Variables
const size_t	MAX_NUM_DRAWABLE_POINTS =10

Enumeration Type Documentation

anonymous enum

anonymous enum

Enumerator
FTGL_BITMAP
FTGL_PIXMAP
FTGL_OUTLINE
FTGL_POLYGON
FTGL_EXTRUDE
FTGL_TEXTURE

anonymous enum

anonymous enum

Text aligment modes for DrawGLText.

Enumerator
DRAWTEXT_ALIGN_LEFT
DRAWTEXT_ALIGN_CENTRE
DRAWTEXT_ALIGN_RIGHT
DRAWTEXT_ALIGN_ENUM_END

anonymous enum

anonymous enum

Primitve drawing mode. (wireframe/solid)

Enumerator
DRAW_WIREFRAME
DRAW_FLAT
DRAW_SMOOTH
DRAW_END_ENUM

anonymous enum

anonymous enum

Axis styles.

Enumerator
AXIS_IN_SPACE

anonymous enum

anonymous enum

Polygon drawing styles.

Enumerator
POLYGON_DRAW_OUTLINE
POLYGON_DRAW_ENUM_END

anonymous enum

anonymous enum

Triangle mesh drawing styles.

Enumerator
TRIMESH_DRAW_SURF
TRIMESH_DRAW_ENUM_END

anonymous enum

anonymous enum

Drawable types.

Enumerator
DRAW_TYPE_POINT
DRAW_TYPE_MANYPOINT
DRAW_TYPE_VECTOR
DRAW_TYPE_TRIANGLE
DRAW_TYPE_QUAD
DRAW_TYPE_POLYGON
DRAW_TYPE_SPHERE
DRAW_TYPE_CYLINDER
DRAW_TYPE_DISPLAYLIST
DRAW_TYPE_GLTEXT
DRAW_TYPE_2D_CIRCLE
DRAW_TYPE_RECTPRISM
DRAW_TYPE_COLOURBAR
DRAW_TYPE_TEXTUREDOVERLAY
DRAW_TYPE_ANIMATEDOVERLAY
DRAW_TYPE_FIELD3D
DRAW_TYPE_ISOSURFACE
DRAW_TYPE_AXIS
DRAW_TYPE_LEGENDOVERLAY
DRAW_TYPE_PROGRESSCIRCLE_OVERLAY
DRAW_TYPE_TRIANGLE_MESH

anonymous enum

anonymous enum

Binding enums. Needed to bind drawable selection.

Enumerator
DRAW_SPHERE_BIND_ORIGIN
DRAW_SPHERE_BIND_RADIUS
DRAW_VECTOR_BIND_ORIENTATION
DRAW_VECTOR_BIND_ORIGIN_ONLY
DRAW_VECTOR_BIND_ORIGIN
DRAW_VECTOR_BIND_TARGET
DRAW_CYLINDER_BIND_ORIGIN
DRAW_CYLINDER_BIND_DIRECTION
DRAW_CYLINDER_BIND_RADIUS
DRAW_RECT_BIND_TRANSLATE
DRAW_RECT_BIND_CORNER_MOVE
DRAW_TEXT_BIND_ORIGIN
DRAW_QUAD_BIND_ORIGIN
DRAW_TRIMESH_BIND_ORIGIN
DRAW_BIND_ENUM_END

anonymous enum

anonymous enum

Drawing mode enumeration for scalar field.

Enumerator
VOLUME_POINTS

Variable Documentation

MAX_NUM_DRAWABLE_POINTS

const size_t MAX_NUM_DRAWABLE_POINTS =10

Referenced by VisController::updateScene().
