plot.h File Reference

#include "backend/filter.h"
#include "common/array2D.h"
#include <map>
#include <vector>
#include <utility>
#include "../config.h"
#include <mgl2/mgl.h>

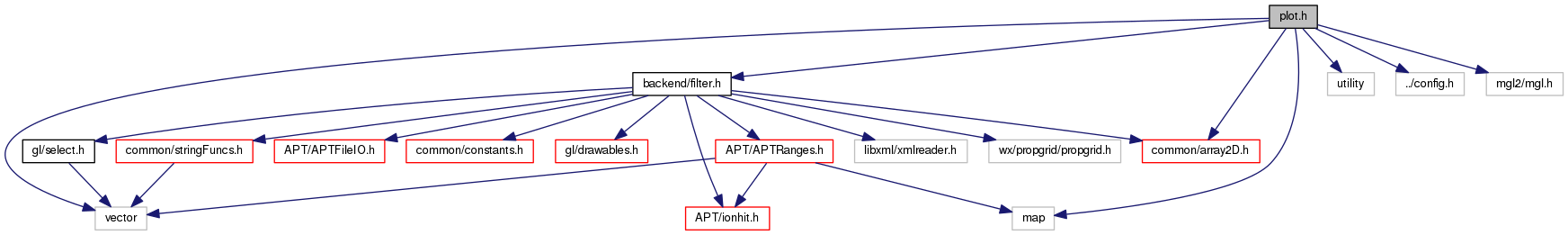

Include dependency graph for plot.h:

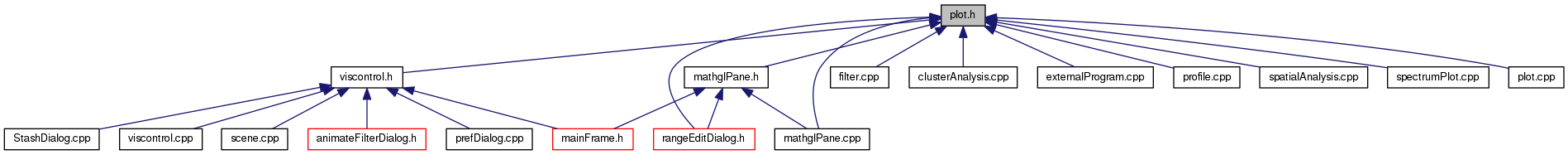

This graph shows which files directly or indirectly include this file:

Classes
class	PlotRegion
	Data class for holding info about non-overlapping. More...
class	RegionGroup
struct	OVERLAY_DATA
class	PlotOverlays
	Thse are 1D-stem style overlays that can be used. More...
class	PlotBase
	Base class for data plotting. More...
class	Plot1D
	1D Function f(x) More...
class	Plot2DFunc
	2D function, f(x,y). More...
class	Plot2DScatter
	2D scatter plot, {x,y}_i More...
class	PlotWrapper

Enumerations
enum	{   PLOT_LINE_LINES =0, PLOT_LINE_BARS, PLOT_LINE_STEPS, PLOT_LINE_STEM,   PLOT_LINE_POINTS, PLOT_LINE_NONE, PLOT_2D_DENS, PLOT_2D_SCATTER,   PLOT_TYPE_ENUM_END }
enum	{   PLOT_MODE_1D, PLOT_MODE_2D, PLOT_MODE_COLUMN, PLOT_MODE_MIXED,   PLOT_MODE_ENUM_END }

Functions
std::string	plotString (unsigned int plotMode)
	Return a human readable string for a given plot type. More...
std::string	plotErrmodeString (unsigned int errMode)
	Return a human readable string for the plot error mode. More...
unsigned int	plotID (const std::string &plotString)
	Return the plot type given a human readable string. More...
unsigned int	plotErrmodeID (const std::string &s)
	Return the error mode type, given the human readable string. More...

Enumeration Type Documentation

anonymous enum

anonymous enum

Enumerator
PLOT_LINE_LINES
PLOT_LINE_BARS
PLOT_LINE_STEPS
PLOT_LINE_STEM
PLOT_LINE_POINTS
PLOT_LINE_NONE
PLOT_2D_DENS
PLOT_2D_SCATTER
PLOT_TYPE_ENUM_END

anonymous enum

anonymous enum

Enumerator
PLOT_MODE_1D
PLOT_MODE_2D
PLOT_MODE_COLUMN
PLOT_MODE_MIXED
PLOT_MODE_ENUM_END

Function Documentation

plotErrmodeID()

unsigned int plotErrmodeID

(

const std::string &

s

)

Return the error mode type, given the human readable string.

References ASSERT, errModeStrings, and PLOT_ERROR_ENDOFENUM.

Referenced by ProfileFilter::setProperty().

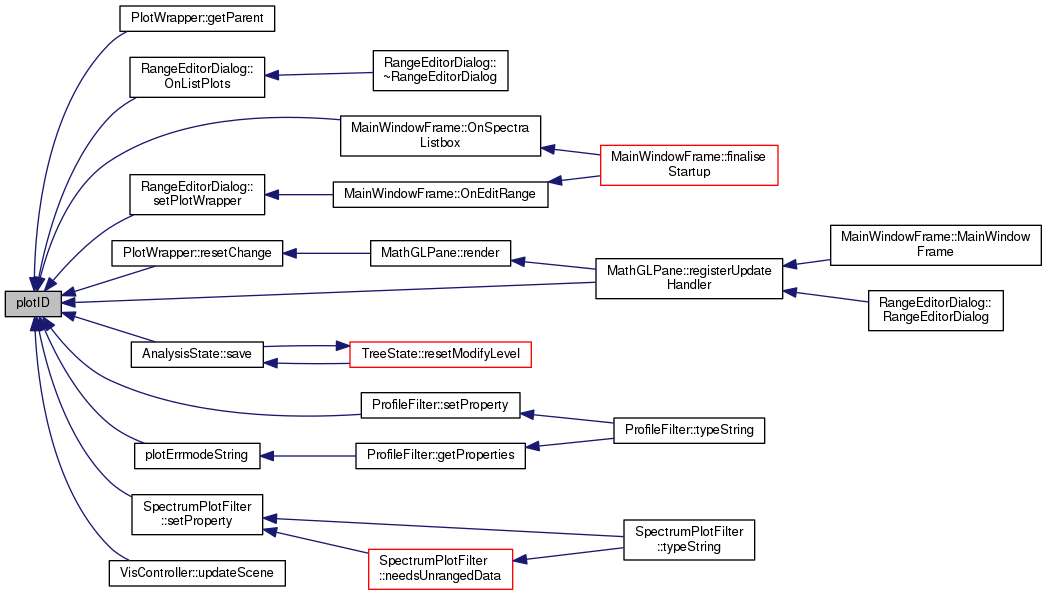

Here is the caller graph for this function:

plotErrmodeString()

std::string plotErrmodeString

(

unsigned int

errMode

)

Return a human readable string for the plot error mode.

References errModeStrings, and plotID().

Referenced by ProfileFilter::getProperties().

Here is the caller graph for this function:

plotID()

unsigned int plotID

(

const std::string &

plotString

)

Return the plot type given a human readable string.

References ASSERT, COMPILE_ASSERT, PLOT_TYPE_ENUM_END, THREEDEP_ARRAYSIZE, traceStyleStrings, and TRANS.

Referenced by PlotWrapper::getParent(), RangeEditorDialog::OnListPlots(), MainWindowFrame::OnSpectraListbox(), plotErrmodeString(), MathGLPane::registerUpdateHandler(), PlotWrapper::resetChange(), AnalysisState::save(), RangeEditorDialog::setPlotWrapper(), SpectrumPlotFilter::setProperty(), ProfileFilter::setProperty(), and VisController::updateScene().

Here is the caller graph for this function:

plotString()

std::string plotString

(

unsigned int

plotMode

)

Return a human readable string for a given plot type.

References ASSERT, PLOT_TYPE_ENUM_END, traceStyleStrings, and TRANS.

Referenced by SpectrumPlotFilter::getProperties(), and ProfileFilter::getProperties().

Here is the caller graph for this function:
