1D Function f(x) More...

#include <plot.h>

Inheritance diagram for Plot1D:

Collaboration diagram for Plot1D:

Public Member Functions
	Plot1D ()

virtual bool	isEmpty () const

virtual PlotBase *	clone () const

void	setData (const std::vector< std::pair< float, float > > &v)
	Set the plot data from a pair and symmetric Y error. More...

void	setData (const std::vector< std::pair< float, float > > &v, const std::vector< float > &symYErr)

void	setData (const std::vector< float > &vX, const std::vector< float > &vY)
	Set the plot data from two vectors and symmetric Y error. More...

void	setData (const std::vector< float > &vX, const std::vector< float > &vY, const std::vector< float > &symYErr)

void	moveRegion (unsigned int region, unsigned int method, float newPos)
	Move a region to a new location. More...

virtual void	drawPlot (mglGraph *graph) const

void	drawRegions (mglGraph *graph, const mglPoint &min, const mglPoint &max) const

void	getRawData (std::vector< std::vector< float > > &rawData, std::vector< std::string > &labels) const
	Retrieve the raw data associated with the currently visible plots. More...

bool	getRegionIdAtPosition (float x, float y, unsigned int &id) const
	Retrieve the ID of the non-overlapping region in X-Y space. More...

void	getRegion (unsigned int id, PlotRegion &r) const
	Retrieve a region using its ID. More...

void	moveRegion (unsigned int regionId, unsigned int method, float newX, float newY) const
	Pass the region movement information to the parent filter object. More...

void	findRegionLimit (unsigned int regionId, unsigned int movementType, float &limitX, float &limitY) const

bool	wantLogPlot () const

void	setLogarithmic (bool p)

float	getSmallestNonzero () const

void	setErrMode (PLOT_ERROR newErrMode)

Public Member Functions inherited from PlotBase
	PlotBase ()

virtual	~PlotBase ()

unsigned int	getType () const

unsigned int	getMode () const

virtual void	getBounds (float &xMin, float &xMax, float &yMin, float &yMax) const
	Return the true data bounds for this plot. More...

void	setStrings (const std::string &x, const std::string &y, const std::string &t)

void	setColour (float rNew, float gNew, float bNew)

void	setTraceStyle (unsigned int newStyle)

std::string	getXLabel () const

std::string	getTitle () const

std::string	getYLabel () const

unsigned int	getPlotMode () const

void	setPlotMode (unsigned int newMode)

void	getColour (float &r, float &g, float &b) const

Additional Inherited Members
Public Attributes inherited from PlotBase
float	minX
	Bounding box for plot. More...

float	maxX

float	minY

float	maxY

bool	visible
	Is trace visible? More...

bool	titleAsRawDataLabel
	Use the plot title for Y data label when exporting raw data. More...

const void *	parentObject
	Pointer to some constant object that generated this plot. More...

unsigned int	parentPlotIndex
	integer to show which of the n plots that the parent generated More...

RegionGroup	regionGroup

Protected Member Functions inherited from PlotBase
void	copyBase (PlotBase *target) const

Static Protected Member Functions inherited from PlotBase
static void	computeDataBounds (const std::vector< float > &d, float &minV, float &maxV)

static void	computeDataBounds (const std::vector< float > &d, const std::vector< float > &errorBar, float &minV, float &maxV)

static void	computeDataBounds (const std::vector< std::pair< float, float > > &d, float &minVx, float &maxVx, float &minVy, float &maxVy)

Protected Attributes inherited from PlotBase
unsigned int	plotMode
	Type of plot. More...

std::string	xLabel
	xaxis label More...

std::string	yLabel
	y axis label More...

std::string	title
	Plot title. More...

float	r

float	g

float	b

unsigned int	traceStyle

Detailed Description

1D Function f(x)

Constructor & Destructor Documentation

◆ Plot1D()

Plot1D::Plot1D ( )

References PLOT_LINE_LINES, and PLOT_MODE_1D.

Member Function Documentation

◆ clone()

PlotBase * Plot1D::clone ( ) const

virtual

Implements PlotBase.

◆ drawPlot()

void Plot1D::drawPlot ( mglGraph * graph ) const

virtual

Implements PlotBase.

References ASSERT, mglColourCode(), PLOT_LINE_BARS, PLOT_LINE_LINES, PLOT_LINE_POINTS, PLOT_LINE_STEM, and PLOT_LINE_STEPS.

Referenced by PlotWrapper::drawPlot().

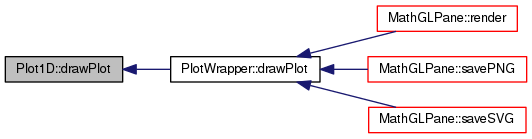

Here is the caller graph for this function:

◆ drawRegions()

void Plot1D::drawRegions	(	mglGraph *	graph,
		const mglPoint &	min,
		const mglPoint &	max
	)		const

References mglColourCode().

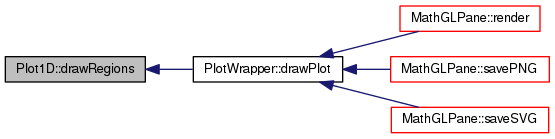

Referenced by PlotWrapper::drawPlot().

Here is the caller graph for this function:

◆ findRegionLimit()

void Plot1D::findRegionLimit	(	unsigned int	regionId,
		unsigned int	movementType,
		float &	limitX,
		float &	limitY
	)		const

◆ getRawData()

void Plot1D::getRawData	(	std::vector< std::vector< float > > &	rawData,
		std::vector< std::string > &	labels
	)		const

virtual

Retrieve the raw data associated with the currently visible plots.

Implements PlotBase.

References TRANS.

◆ getRegion()

void Plot1D::getRegion	(	unsigned int	id,
		PlotRegion &	r
	)		const

Retrieve a region using its ID.

◆ getRegionIdAtPosition()

bool Plot1D::getRegionIdAtPosition	(	float	x,
		float	y,
		unsigned int &	id
	)		const

Retrieve the ID of the non-overlapping region in X-Y space.

◆ getSmallestNonzero()

float Plot1D::getSmallestNonzero ( ) const

◆ isEmpty()

bool Plot1D::isEmpty ( ) const

virtual

Implements PlotBase.

References ASSERT.

◆ moveRegion() [1/2]

void Plot1D::moveRegion	(	unsigned int	region,
		unsigned int	method,
		float	newPos
	)

Move a region to a new location.

◆ moveRegion() [2/2]

void Plot1D::moveRegion	(	unsigned int	regionId,
		unsigned int	method,
		float	newX,
		float	newY
	)		const

Pass the region movement information to the parent filter object.

◆ setData() [1/4]

void Plot1D::setData ( const std::vector< std::pair< float, float > > & v )

Set the plot data from a pair and symmetric Y error.

Referenced by VisController::updateScene().

Here is the caller graph for this function:

◆ setData() [2/4]

void Plot1D::setData	(	const std::vector< std::pair< float, float > > &	v,
		const std::vector< float > &	symYErr
	)

◆ setData() [3/4]

void Plot1D::setData	(	const std::vector< float > &	vX,
		const std::vector< float > &	vY
	)

Set the plot data from two vectors and symmetric Y error.

◆ setData() [4/4]

void Plot1D::setData	(	const std::vector< float > &	vX,
		const std::vector< float > &	vY,
		const std::vector< float > &	symYErr
	)

References ASSERT, and AXIS_MIN_TOLERANCE.

◆ setErrMode()

void Plot1D::setErrMode ( PLOT_ERROR newErrMode )

References ASSERT, PLOT_ERROR_MOVING_AVERAGE, and PLOT_ERROR_NONE.

Referenced by VisController::updateScene().

Here is the caller graph for this function:

◆ setLogarithmic()

void Plot1D::setLogarithmic ( bool p )

inline

Referenced by VisController::updateScene().

Here is the caller graph for this function:

◆ wantLogPlot()

bool Plot1D::wantLogPlot ( ) const

inline

The documentation for this class was generated from the following files:
