tree< T, tree_node_allocator >::iterator_base Class Reference

Base class for iterators, only pointers stored, no traversal logic. More...

#include <tree.hh>

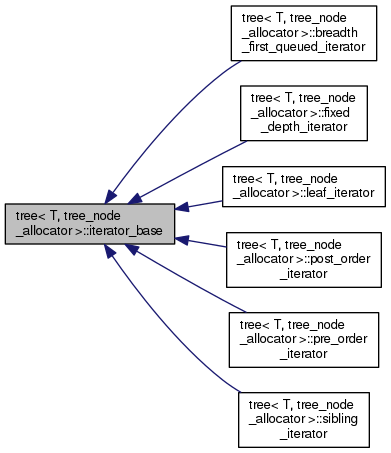

Inheritance diagram for tree< T, tree_node_allocator >::iterator_base:

Collaboration diagram for tree< T, tree_node_allocator >::iterator_base:

Public Types
typedef T	value_type
typedef T *	pointer
typedef T &	reference
typedef size_t	size_type
typedef ptrdiff_t	difference_type
typedef std::bidirectional_iterator_tag	iterator_category

Public Member Functions
	iterator_base ()
	iterator_base (tree_node *)
T &	operator* () const
T *	operator-> () const
void	skip_children ()
	When called, the next increment/decrement skips children of this node. More...
void	skip_children (bool skip)
unsigned int	number_of_children () const
	Number of children of the node pointed to by the iterator. More...
sibling_iterator	begin () const
sibling_iterator	end () const

Public Attributes
tree_node *	node

Protected Attributes
bool	skip_current_children_

Detailed Description

template<class T, class tree_node_allocator = std::allocator<tree_node_<T> >>
class tree< T, tree_node_allocator >::iterator_base

Base class for iterators, only pointers stored, no traversal logic.

Member Typedef Documentation

difference_type

template<class T, class tree_node_allocator = std::allocator<tree_node_<T> >>

typedef ptrdiff_t tree< T, tree_node_allocator >::iterator_base::difference_type

iterator_category

template<class T, class tree_node_allocator = std::allocator<tree_node_<T> >>

typedef std::bidirectional_iterator_tag tree< T, tree_node_allocator >::iterator_base::iterator_category

pointer

template<class T, class tree_node_allocator = std::allocator<tree_node_<T> >>

typedef T* tree< T, tree_node_allocator >::iterator_base::pointer

reference

template<class T, class tree_node_allocator = std::allocator<tree_node_<T> >>

typedef T& tree< T, tree_node_allocator >::iterator_base::reference

size_type

template<class T, class tree_node_allocator = std::allocator<tree_node_<T> >>

typedef size_t tree< T, tree_node_allocator >::iterator_base::size_type

value_type

template<class T, class tree_node_allocator = std::allocator<tree_node_<T> >>

typedef T tree< T, tree_node_allocator >::iterator_base::value_type

Constructor & Destructor Documentation

iterator_base() [1/2]

template<class T , class tree_node_allocator >

tree< T, tree_node_allocator >::iterator_base::iterator_base

(

)

iterator_base() [2/2]

template<class T , class tree_node_allocator >

tree< T, tree_node_allocator >::iterator_base::iterator_base

(

tree_node *

tn

)

Member Function Documentation

begin()

template<class T , class tree_node_allocator >

tree< T, tree_node_allocator >::sibling_iterator tree< T, tree_node_allocator >::iterator_base::begin

(

)

const

References tree< T, tree_node_allocator >::iterator_base::end(), tree_node_< T >::first_child, tree< T, tree_node_allocator >::iterator_base::node, and tree< T, tree_node_allocator >::sibling_iterator::parent_.

Referenced by FilterTree::getAccumulatedPropagationMaps(), tree< T, tree_node_allocator >::breadth_first_queued_iterator::operator++(), and FilterTree::respliceFilter().

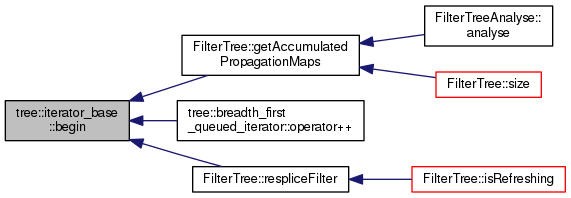

Here is the caller graph for this function:

end()

template<class T , class tree_node_allocator >

tree< T, tree_node_allocator >::sibling_iterator tree< T, tree_node_allocator >::iterator_base::end

(

)

const

References tree< T, tree_node_allocator >::iterator_base::node, and tree< T, tree_node_allocator >::sibling_iterator::parent_.

Referenced by tree< T, tree_node_allocator >::iterator_base::begin(), FilterTree::getAccumulatedPropagationMaps(), tree< T, tree_node_allocator >::breadth_first_queued_iterator::operator++(), and FilterTree::respliceFilter().

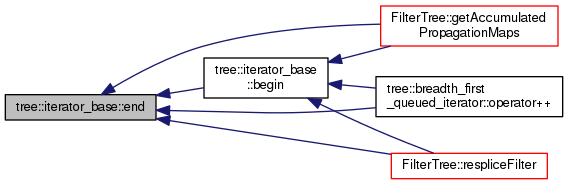

Here is the caller graph for this function:

number_of_children()

template<class T , class tree_node_allocator >

unsigned int tree< T, tree_node_allocator >::iterator_base::number_of_children

(

)

const

Number of children of the node pointed to by the iterator.

References tree_node_< T >::first_child, tree_node_< T >::last_child, tree_node_< T >::next_sibling, and tree< T, tree_node_allocator >::iterator_base::node.

operator*()

template<class T , class tree_node_allocator >

T & tree< T, tree_node_allocator >::iterator_base::operator*

(

)

const

References tree_node_< T >::data, and tree< T, tree_node_allocator >::iterator_base::node.

operator->()

template<class T , class tree_node_allocator >

T * tree< T, tree_node_allocator >::iterator_base::operator->

(

)

const

References tree_node_< T >::data, and tree< T, tree_node_allocator >::iterator_base::node.

skip_children() [1/2]

template<class T , class tree_node_allocator >

void tree< T, tree_node_allocator >::iterator_base::skip_children

(

)

When called, the next increment/decrement skips children of this node.

References tree< T, tree_node_allocator >::iterator_base::skip_current_children_.

Referenced by tree< T, tree_node_allocator >::post_order_iterator::post_order_iterator(), and tree< T, tree_node_allocator >::pre_order_iterator::pre_order_iterator().

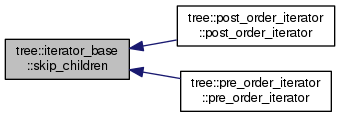

Here is the caller graph for this function:

skip_children() [2/2]

template<class T , class tree_node_allocator >

void tree< T, tree_node_allocator >::iterator_base::skip_children

(

bool

skip

)

References tree< T, tree_node_allocator >::iterator_base::skip_current_children_.

Member Data Documentation

node

template<class T, class tree_node_allocator = std::allocator<tree_node_<T> >>

tree_node* tree< T, tree_node_allocator >::iterator_base::node

Referenced by tree< T, tree_node_allocator >::iterator_base::begin(), tree< Filter *>::begin_fixed(), tree< T, tree_node_allocator >::post_order_iterator::descend_all(), tree< T, tree_node_allocator >::iterator_base::end(), tree< T, tree_node_allocator >::leaf_iterator::leaf_iterator(), tree< T, tree_node_allocator >::iterator_base::number_of_children(), tree< T, tree_node_allocator >::pre_order_iterator::operator!=(), tree< T, tree_node_allocator >::post_order_iterator::operator!=(), tree< T, tree_node_allocator >::breadth_first_queued_iterator::operator!=(), tree< T, tree_node_allocator >::fixed_depth_iterator::operator!=(), tree< T, tree_node_allocator >::sibling_iterator::operator!=(), tree< T, tree_node_allocator >::leaf_iterator::operator!=(), tree< T, tree_node_allocator >::iterator_base_less::operator()(), tree< T, tree_node_allocator >::iterator_base::operator*(), tree< T, tree_node_allocator >::pre_order_iterator::operator++(), tree< T, tree_node_allocator >::post_order_iterator::operator++(), tree< T, tree_node_allocator >::breadth_first_queued_iterator::operator++(), tree< T, tree_node_allocator >::fixed_depth_iterator::operator++(), tree< T, tree_node_allocator >::sibling_iterator::operator++(), tree< T, tree_node_allocator >::leaf_iterator::operator++(), tree< T, tree_node_allocator >::pre_order_iterator::operator--(), tree< T, tree_node_allocator >::post_order_iterator::operator--(), tree< T, tree_node_allocator >::fixed_depth_iterator::operator--(), tree< T, tree_node_allocator >::sibling_iterator::operator--(), tree< T, tree_node_allocator >::leaf_iterator::operator--(), tree< T, tree_node_allocator >::iterator_base::operator->(), tree< T, tree_node_allocator >::pre_order_iterator::operator==(), tree< T, tree_node_allocator >::post_order_iterator::operator==(), tree< T, tree_node_allocator >::breadth_first_queued_iterator::operator==(), tree< T, tree_node_allocator >::fixed_depth_iterator::operator==(), tree< T, tree_node_allocator >::sibling_iterator::operator==(), tree< T, tree_node_allocator >::leaf_iterator::operator==(), tree< T, tree_node_allocator >::post_order_iterator::post_order_iterator(), tree< T, tree_node_allocator >::pre_order_iterator::pre_order_iterator(), and tree< T, tree_node_allocator >::sibling_iterator::sibling_iterator().

skip_current_children_

template<class T, class tree_node_allocator = std::allocator<tree_node_<T> >>

bool tree< T, tree_node_allocator >::iterator_base::skip_current_children_

protected

Referenced by tree< T, tree_node_allocator >::pre_order_iterator::operator++(), tree< T, tree_node_allocator >::post_order_iterator::operator++(), tree< T, tree_node_allocator >::post_order_iterator::operator--(), and tree< T, tree_node_allocator >::iterator_base::skip_children().

---

The documentation for this class was generated from the following file:

• tree.hh
